Teltonika TSW101
Teltonika TSW101

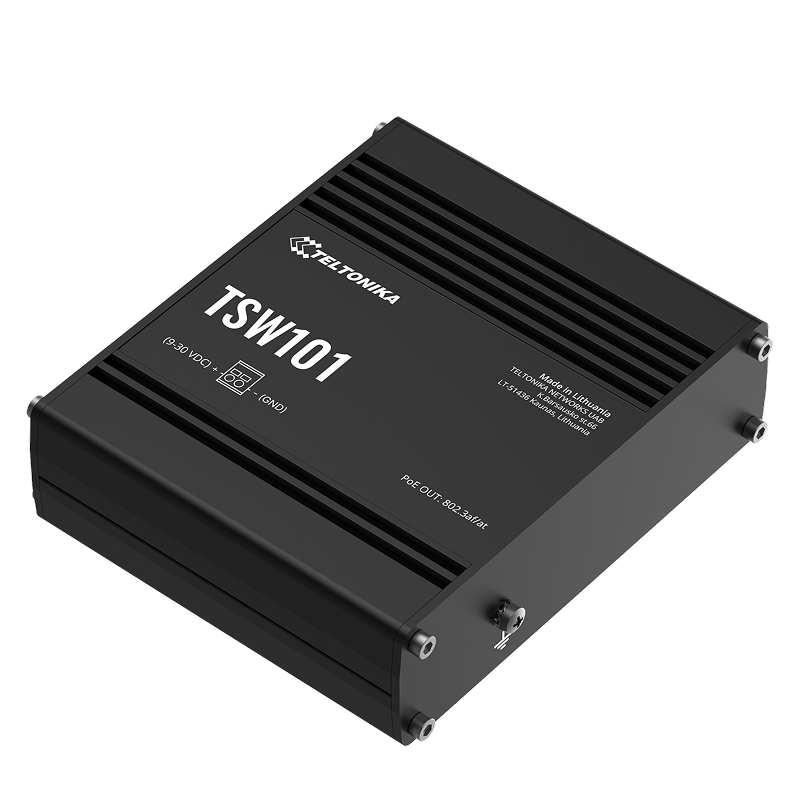

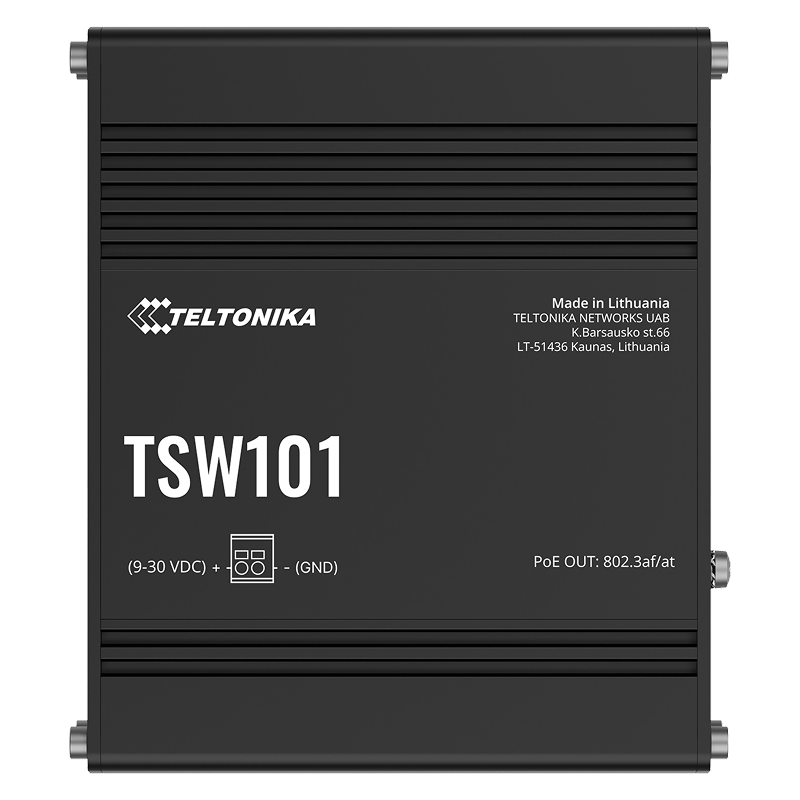

The TSW101 is a plug-and-play automotive switch specifically designed for automotive applications. With five Gigabit Ethernet ports, four of which support PoE+, the TSW101 can power your end devices while connecting them to the internet. This automotive switch can be powered by a 12V or 24V car battery and does not require an additional power supply.
Regular price
669 SEK
Regular price
Sale price
669 SEK
Unit price
per
Excl. VAT
Produktnummer: TSW101000000
Couldn't load pickup availability
What's in the box?
What's in the box?
Row that can be hiddensaxasa
Row that can be hiddensaxasa
Tekniska specifikationer
Ethernet
ETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX cross-connect
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Industrial protocols
Profinet: Profinet Class A compliance (available with selectable ordering code)
POE OUT
PoE ports:Port 1–4
PoE Standards: 802.3af and 802.3at Option A
Max PoE power per port (at PSE): 30 W
Total PoE power budget (at PSE): 60 W
Maximum Ethernet cable length: 100 m
PoE Standards: 802.3af and 802.3at Option A
Max PoE power per port (at PSE): 30 W
Total PoE power budget (at PSE): 60 W
Maximum Ethernet cable length: 100 m
Performance specifications
Bandwidth (non-blocking): 10 Gbps
Packet buffer: 128 KB
MAC address table size: 2,000 entries
Jumbo frame support: 9216 bytes
Packet buffer: 128 KB
MAC address table size: 2,000 entries
Jumbo frame support: 9216 bytes
Current
Connector: 2-pin industrial DC power connector
Input voltage range: 9 – 30 V DC
Input voltage for PoE output: 9 – 30 V DC
Power Consumption: Sleep: 0.64 W / Max: 2.31 W / Max PoE: 62.3 W
Power Supply (PSU): Powered by 12V or 24V car battery. No additional power supply required.
Input voltage range: 9 – 30 V DC
Input voltage for PoE output: 9 – 30 V DC
Power Consumption: Sleep: 0.64 W / Max: 2.31 W / Max PoE: 62.3 W
Power Supply (PSU): Powered by 12V or 24V car battery. No additional power supply required.
Physical interfaces

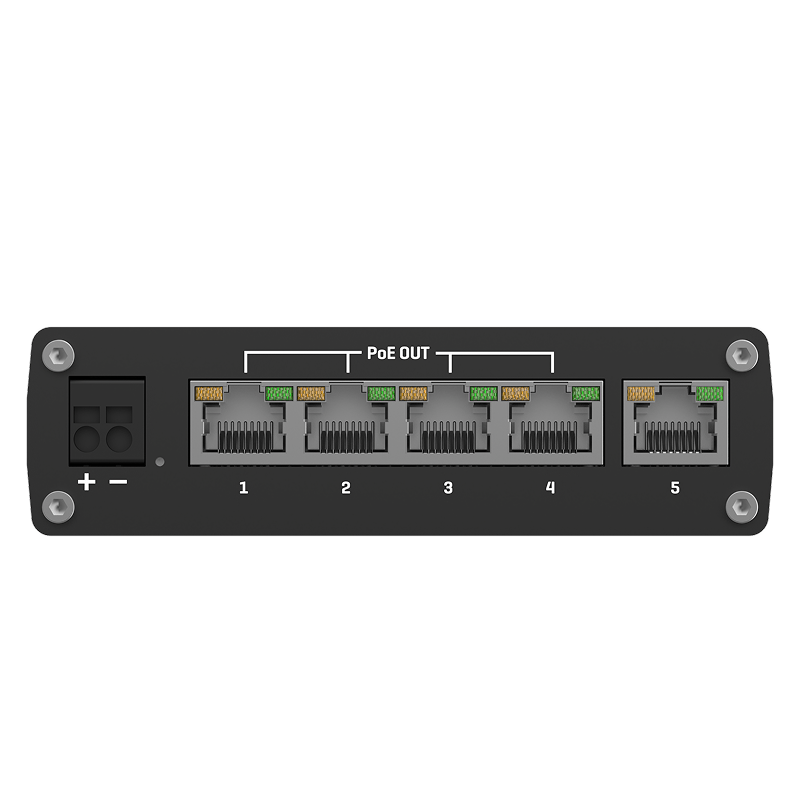

Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LEDs: 1 x Power LED, 10 x ETH status LEDs
Power: 1 x 2-pin industrial DC power connector
Other: 1 x Grounding screw
Status LEDs: 1 x Power LED, 10 x ETH status LEDs
Power: 1 x 2-pin industrial DC power connector
Other: 1 x Grounding screw
Physical specifications
Housing material: Aluminum housing
Dimensions (W x H x D): 115 x 32 x 95 mm
Weight: 384g
Mounting options: DIN rail, wall mount, flat surface (all require accessory kit)
Dimensions (W x H x D): 115 x 32 x 95 mm
Weight: 384g
Mounting options: DIN rail, wall mount, flat surface (all require accessory kit)
Operating environment
Operating temperature: -40°C to 75°C
Operating humidity: 5% to 95%, non-condensing
Protection class: IP30
Operating humidity: 5% to 95%, non-condensing
Protection class: IP30
Regulatory & type approvals
Regulatory: CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
EMC emissions & immunity
Standards: EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN 55035:2017 + A11:2020
EMC emissions & immunity
Standards: EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
ESD: EN 61000-4-2:2009
Radiated immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Conducted immunity (CS): EN 61000-4-6:2014
EN 55035:2017 + A11:2020
ESD: EN 61000-4-2:2009
Radiated immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Conducted immunity (CS): EN 61000-4-6:2014
Security
Standards: CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
Garanti
2 års fabriksgaranti
Plug and Play – Easy installation without hassle
PoE+ with powerful power delivery and flexibility
Industrial design with robust aluminum housing for harsh environments
Industrial design with robust aluminum housing for harsh environments
