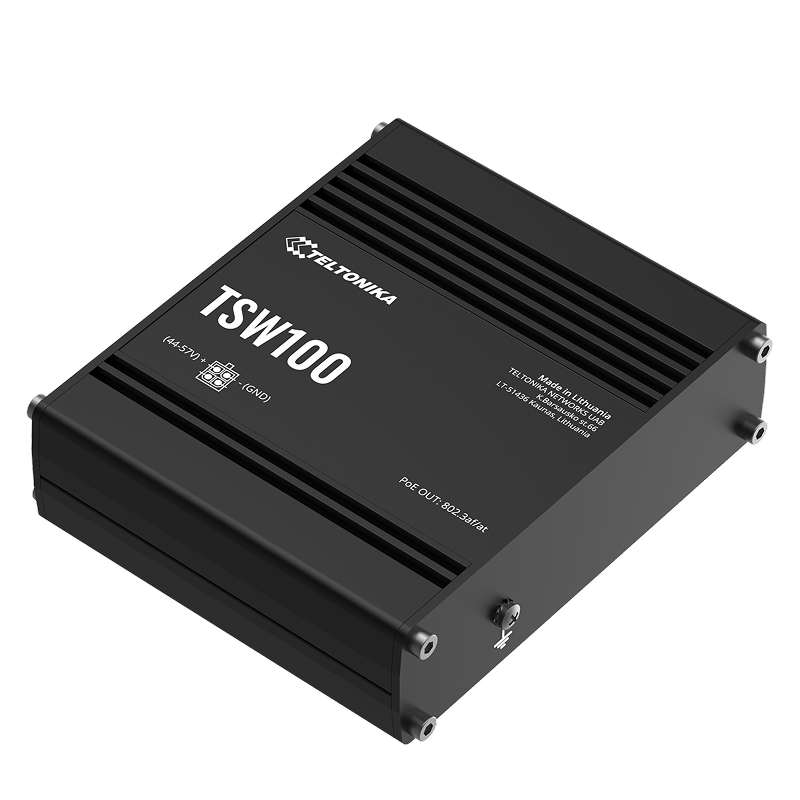

Teltonika TSW100
Teltonika TSW100
The TSW100 is an unmanaged Gigabit Ethernet switch with Power-over-Ethernet (PoE) support. As a Power Source Equipment (PSE), it acts as a central power supply and delivers up to 30 watts per port, reducing installation effort. The five Gigabit Ethernet ports offer a cost-effective, high-bandwidth solution for a secure industrial Ethernet network.
Regular price
794 SEK
Regular price
Sale price
794 SEK
Unit price
per
Excl. VAT
Produktnummer: TSW100000000
Couldn't load pickup availability
What's in the box?
What's in the box?
Row that can be hiddensaxasa
Row that can be hiddensaxasa
Tekniska specifikationer
Ethernet
ETH: 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX cross-connect
IEEE 802.3 series of standards: The IEEE 802.3 series of standards
IEEE 802.3 series of standards: The IEEE 802.3 series of standards
Industrial protocols
Profinet: Profinet Class A compliance
POE OUT
PoE ports: Port 1–4
PoE standards: 802.3af and 802.3at Option A (Order code: TSW100 1***)
802.3af and 802.3at Option B (Order code: TSW100 0***)
Max PoE power per port (at PSE): 30 W
PoE power budget (at PSE): 120 W
PoE standards: 802.3af and 802.3at Option A (Order code: TSW100 1***)
802.3af and 802.3at Option B (Order code: TSW100 0***)
Max PoE power per port (at PSE): 30 W
PoE power budget (at PSE): 120 W
Performance specifications
Bandwidth: 10Gbps
Packet buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes
Packet buffer: 128 KB
MAC address table size: 2K entries
Jumbo frame support: 9216 bytes
Current
Connector: 4-pin industrial DC power connector
Input voltage range: 7 – 57 VDC
Input voltage for PoE output: 44 – 57 VDC
Power consumption: Sleep: 2 W / Max (without PoE): 9 W / Max PoE: 129 W
Input voltage range: 7 – 57 VDC
Input voltage for PoE output: 44 – 57 VDC
Power consumption: Sleep: 2 W / Max (without PoE): 9 W / Max PoE: 129 W
Physical interfaces
Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
Status LED: 1 x Power LED, 10 x ETH Status LED
Power: 1 x 4-pin power connector
Other: 1 x Grounding screw
Status LED: 1 x Power LED, 10 x ETH Status LED
Power: 1 x 4-pin power connector
Other: 1 x Grounding screw
Physical specifications
Enclosure material: Full aluminum housing
Dimensions (W x H x D): 115 x 32.2 x 101.2 mm
Weight: 350g
Mounting options: DIN rail, wall mount, flat surface (all require additional mounting kit)
Dimensions (W x H x D): 115 x 32.2 x 101.2 mm
Weight: 350g
Mounting options: DIN rail, wall mount, flat surface (all require additional mounting kit)
Operating environment
Operating temperature: -40°C to 75°C
Operating humidity: 5% to 95% non-condensing
Enclosure class: IP30
Operating humidity: 5% to 95% non-condensing
Enclosure class: IP30
Regulatory & type approvals
Regulatory: CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark
EMC emissions & immunity
Standards: EN 55032:2015
EN 55035:2017
EN 301 489-1 V2.2.3
ESD: EN 61000-4-2:2009
Radiated immunity: EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT: EN 61000-4-4:2012
Surge immunity (AC power supply): EN 61000-4-5:2014
CS: EN 61000-4-6:2014
DIP: EN 61000-4-11:2004
EN 55035:2017
EN 301 489-1 V2.2.3
ESD: EN 61000-4-2:2009
Radiated immunity: EN IEC 61000-4-3:2006 + A1:2008 + A2:2010
EFT: EN 61000-4-4:2012
Surge immunity (AC power supply): EN 61000-4-5:2014
CS: EN 61000-4-6:2014
DIP: EN 61000-4-11:2004
Security
Standards: IEC 62368-1:2018
EN IEC 62368-1:2020+A11:2020
EN IEC 62368-1:2020+A11:2020
Garanti
2 års fabriksgaranti
