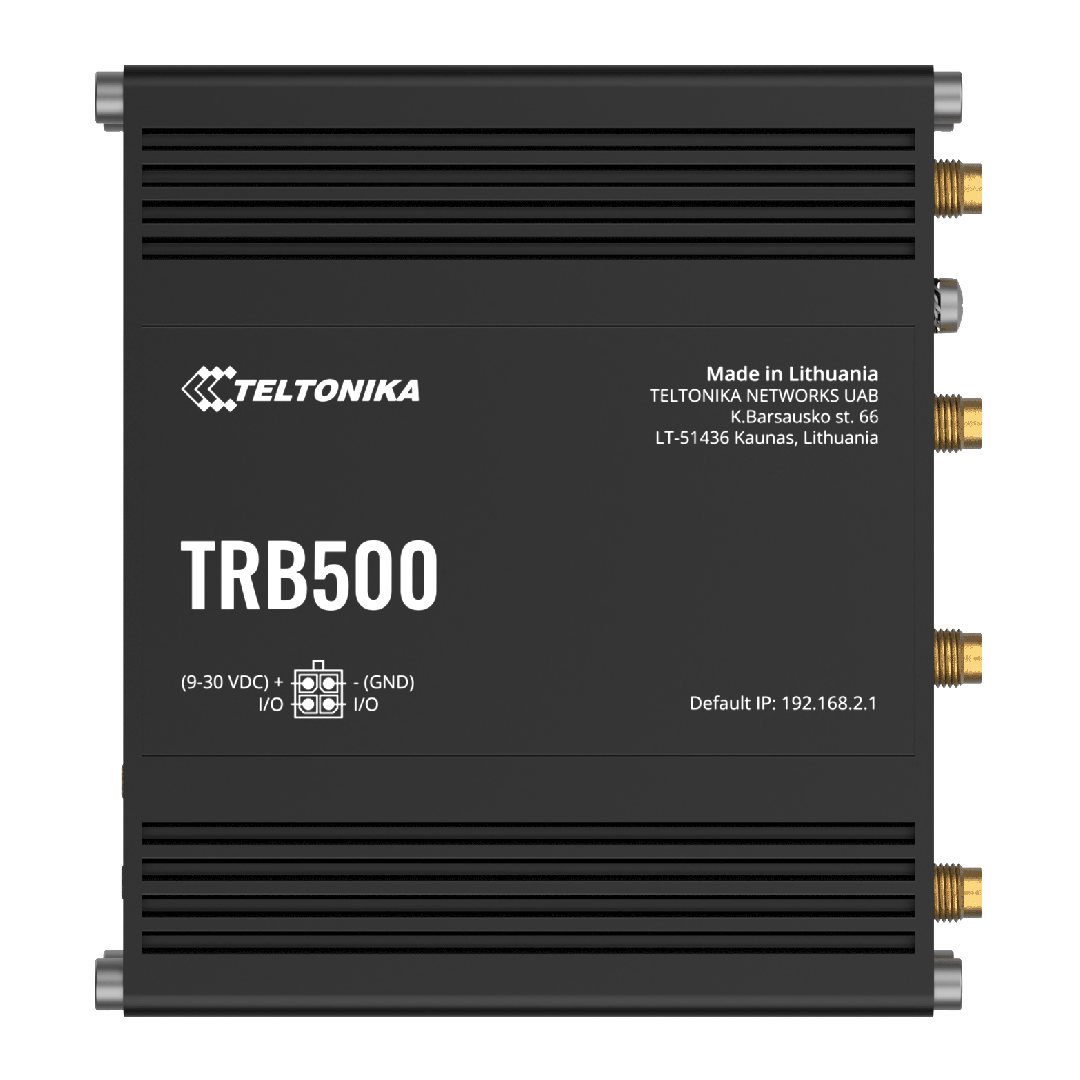

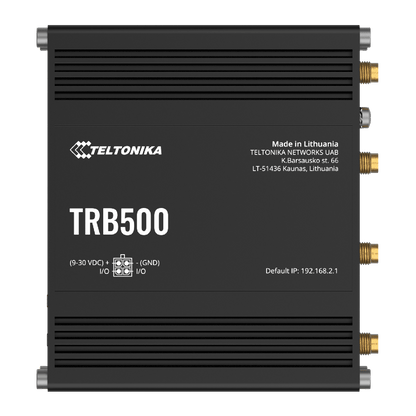

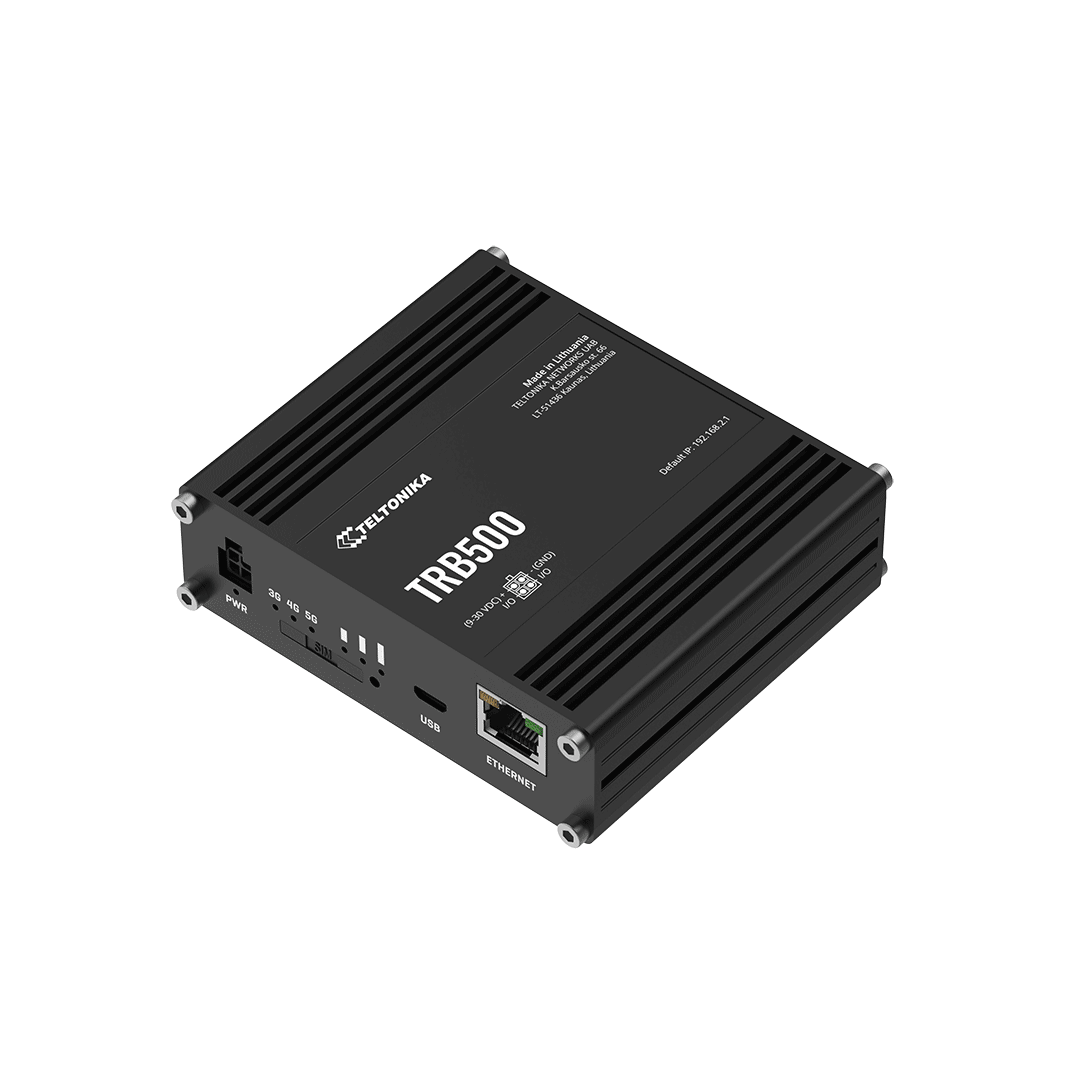

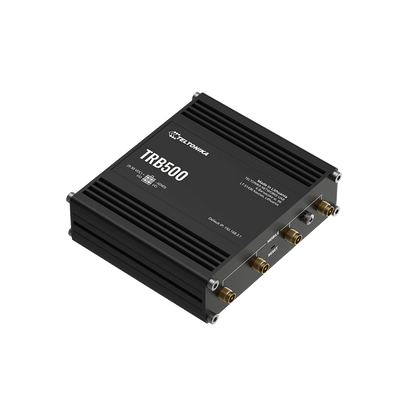

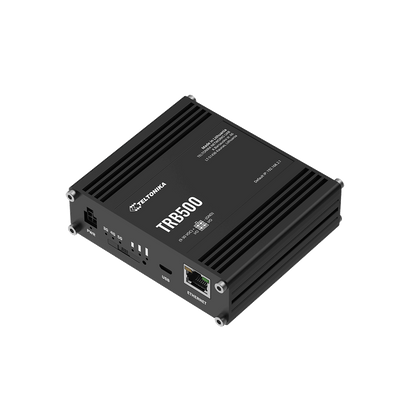

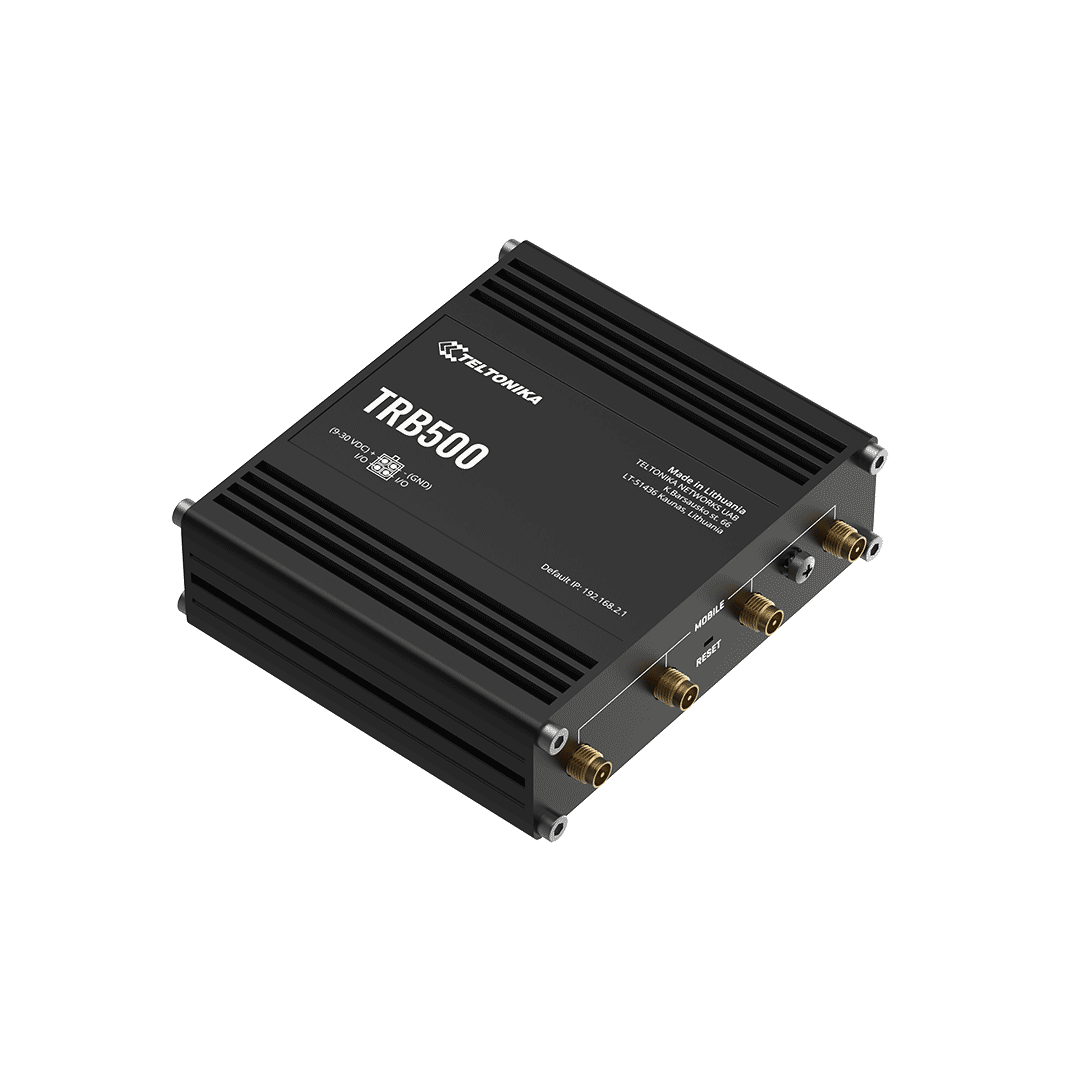

Teltonika TRB500

Mobile module: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600Mbps UL (2x2); 4G LTE Cat 20 up to 2.0 Gbps DL/ 200M Mbps UL; 3G up to 42 DL/ 5.76 UL Mbps
3GPP Release: Release 15
Status: IMSI, ICCID, operator, operator state, data state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC and MNC
SMS: SMS status, SMS configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS auto-reply, SMPP
USSD: Support for sending and reading Unstructured Supplementary Service Data messages
Block/Allow list: Operator block/allow list (per country or individual operators)
Tape management: Tape lock, display of used tape status
SIM PIN code management: SIM PIN code management allows setting, changing or disabling the SIM card PIN code
APN: Auto APN
Bridge: Direct connection (bridge) between mobile ISP and device in LAN
Passthrough: Gateway assigns its mobile WAN IP address to another device in the LAN
Framed routing: Framed routing: support for an IP network behind 5G UE

1 x ETH port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support: H.323 and SIP-alg protocol NAT helper, which enables correct routing of VoIP packets
Connection Monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for Link Inspection
Firewall: Port forwarding, traffic rules, custom rules, TTL target customization
Firewall Status Page: View all your firewall statistics, rules, and rule counters
Port Management: View device ports, enable and disable each port, turn auto-configuration on or off, change transmission speed, and more
Network topology: Visual representation of your network showing which devices are connected to each other
Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorization, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group restrictions, user management, 9 default customizable themes and the ability to upload and download custom hotspot themes
DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
DDNS: Supports >25 service providers, others can be configured manually
DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS requests over HTTPS
Network backup: Mobile, VRRP, wired options, all can be used as automatic failover
SSHFS: Ability to mount remote file systems via the SSH protocol
Traffic Management: Real-time monitoring, wireless signal graphs, traffic consumption history

Authentication: Distributed key, digital certificates, X.509 certificates, TACACS+, internal and external RADIUS user authentication, IP and login attempt blocking, time-based login blocking, built-in random password generator
Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention: DDOS protection (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scanning protection (SYN-FIN, SYN-RST, X-mas, NULL flag, FIN scanning attacks)
VLAN: Port and tag-based VLAN separation
Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter: Blacklist to block unwanted websites, whitelist to allow only specific websites
Access Control: Flexible access control for SSH, web interface, CLI and Telnet
SSL certificate generation: Let's Encrypt and SCEP certificate generation methods

OpenVPN: Multiple clients and one server can run simultaneously, 27 encryption methods
OpenVPN encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec: XFRM, IKEv1, IKEv2, with 14 IPsec encryption methods (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE: GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP: Client/Server instance can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel: Proxy designed to add TLS encryption to existing clients and servers without changing the application's code
DMVPN: Method for building scalable IPsec VPNs, phase 2 and phase 3 and support for dual hubs
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN client support
WireGuard: WireGuard VPN client and server support
Tinc: Tinc offers encryption, authentication, and compression in its tunnels. Client and server support.

Supported modes: Client, Server
Supported connection types: TCP

Supported modes: Server, Client
Supported connection types: TCP
Custom Registers: MODBUS TCP custom register block requests that read/write to a file inside the router and can be used to extend MODBUS TCP client functionality
Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Protocol: HTTP(S), MQTT, Azure MQTT
Data to Server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting that allows scripts to use the router's Data to Server feature

Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS server via MQTT broker

Supported modes: Station, Outstation
Supported connection: TCP

DLMS support: DLMS – standard protocol for exchanging meter data
Supported modes: Client
Supported connection types: TCP
COSEM: Enables scanning of the meter's COSEM object for automatic detection and configuration

Teltonika Networks Web API (beta) support: Extend your device's capabilities by using a set of configurable API endpoints to retrieve or modify data. For more information, please see this documentation: https://developers.teltonika-networks.com

WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshooting, multiple event log servers, firmware update notifications, event log, system log, kernel log, internet status
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
SMS: SMS status, SMS configuration
Call: Restart, status, mobile data on/off, output on/off, answer/hang up with timer
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT: MQTT Broker, MQTT publisher
SNMP: SNMP (v1, v2, v3), SNMP Trap, protection against brute force attacks
JSON-RPC: Management API over HTTP/HTTPS
RMS: Teltonika Remote Management System (RMS)

ThingWorx: Allows monitoring of: WAN type, WAN IP, mobile carrier name, mobile signal strength, mobile network type
Cumulocity - Cloud of Things: Allows monitoring of: Device model, revision and serial number, WAN type and IP, mobile cell ID, ICCID, IMEI, connection type, operator, signal strength. Has reboot and firmware upgrade actions
Azure IoT Hub: Can be configured with Data to Server to send all available parameters to the cloud. Supports Direct Method which allows to run RutOS API calls on IoT Hub. Also has Plug and Play integration with Device Provisioning Service which enables zero-configuration provisioning of devices to IoT Hub
AWS IoT Core: Tools for interacting with the AWS cloud platform. Jobs support: Call the device API using AWS Jobs functionality

CPU: Single-core ARM Cortex A7, 1.5 GHz
RAM: 256MB
FLASH storage: 512 MB

WEB UI: Update firmware from file, check firmware on server, configuration profiles, configuration backup
FOTA: Update firmware
RMS: Update firmware/configuration for multiple devices at once
Keep settings: Update firmware without losing current configuration
Factory Reset: A full factory reset will restore all system settings, including IP address, PIN, and user data to the manufacturer's default configuration.

Operating system: RutOS (OpenWrt-based Linux OS)
Supported languages: Busybox shell, Lua, C, C++, and Python, Java in the package manager
Development tools: SDK package with build environment provided
GPL Customization: You can create your own custom, branded firmware and website application by changing colors, logos, and other elements of our firmware to suit your or your customers' needs
Package Manager: The package manager is a service used to install additional software on the device

Input: Up to 2 x configurable digital inputs (shared), 0–6 V detected as logic low, 8–30 V detected as logic high
Output: Up to 2 x configurable digital outputs (shared), open collector output, max output 30 V, 300 mA
Events: Email, RMS, SMS
I/O Juggler: Allows you to set certain I/O conditions to initiate an event

Connector: 4-pin industrial DC power connector
Input voltage: 9 – 30 VDC, reverse polarity protection, surge protection +/-1 kV 50 µs max
Power consumption: Sleep: < 3 W, Max < 6 W

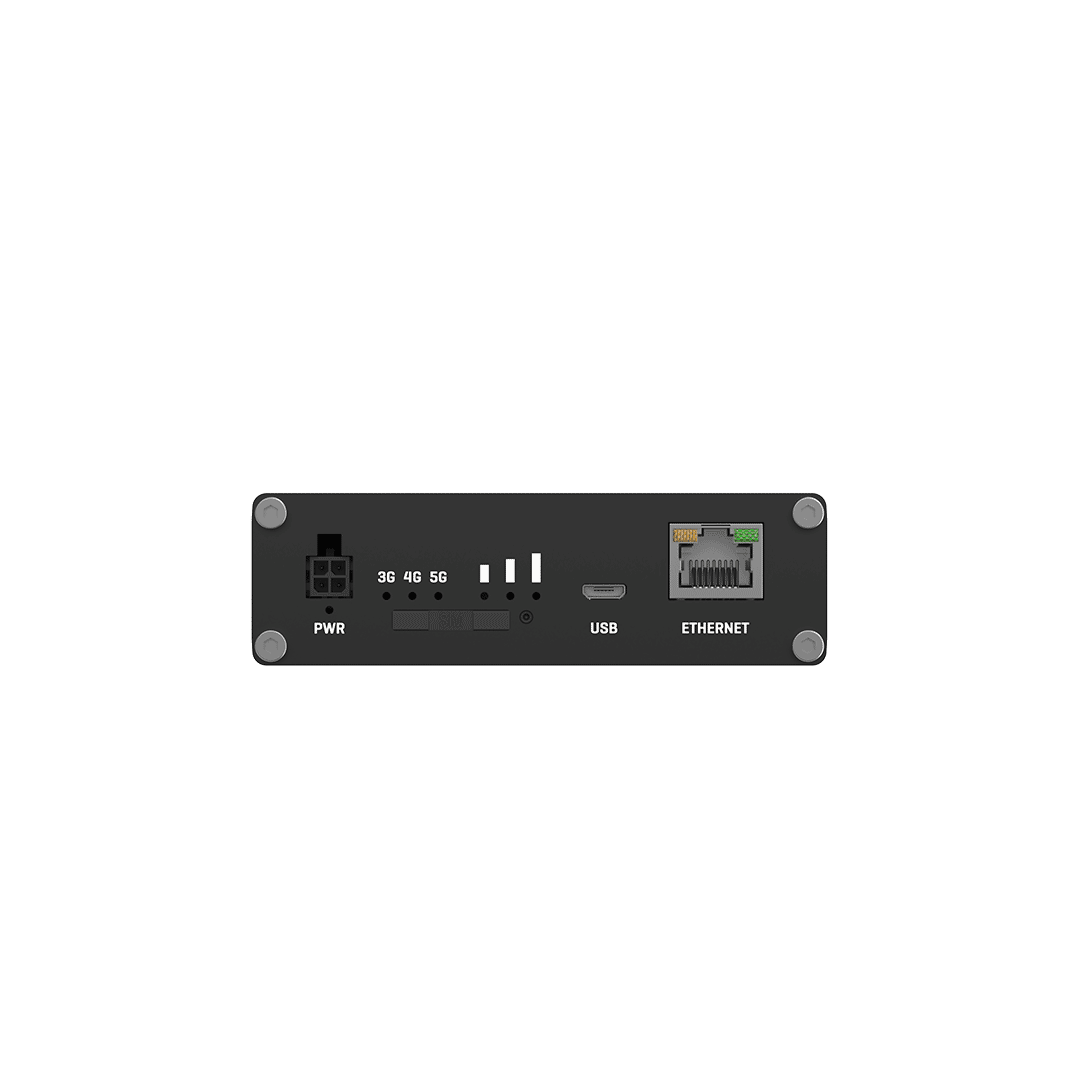

Ethernet: 1 x RJ45 port, 10/100/1000 Mbps
I/O: 2 x configurable I/O pins on 4-pin power connector
Status LEDs: 3 x connection type status LEDs, 3 x connection strength status LEDs, 2 x Ethernet status LEDs, 1 x power LED
SIM: 1 x SIM card slot (Mini SIM - 2FF), 1.8 V/3 V
Power: 1 x 4-pin power connector

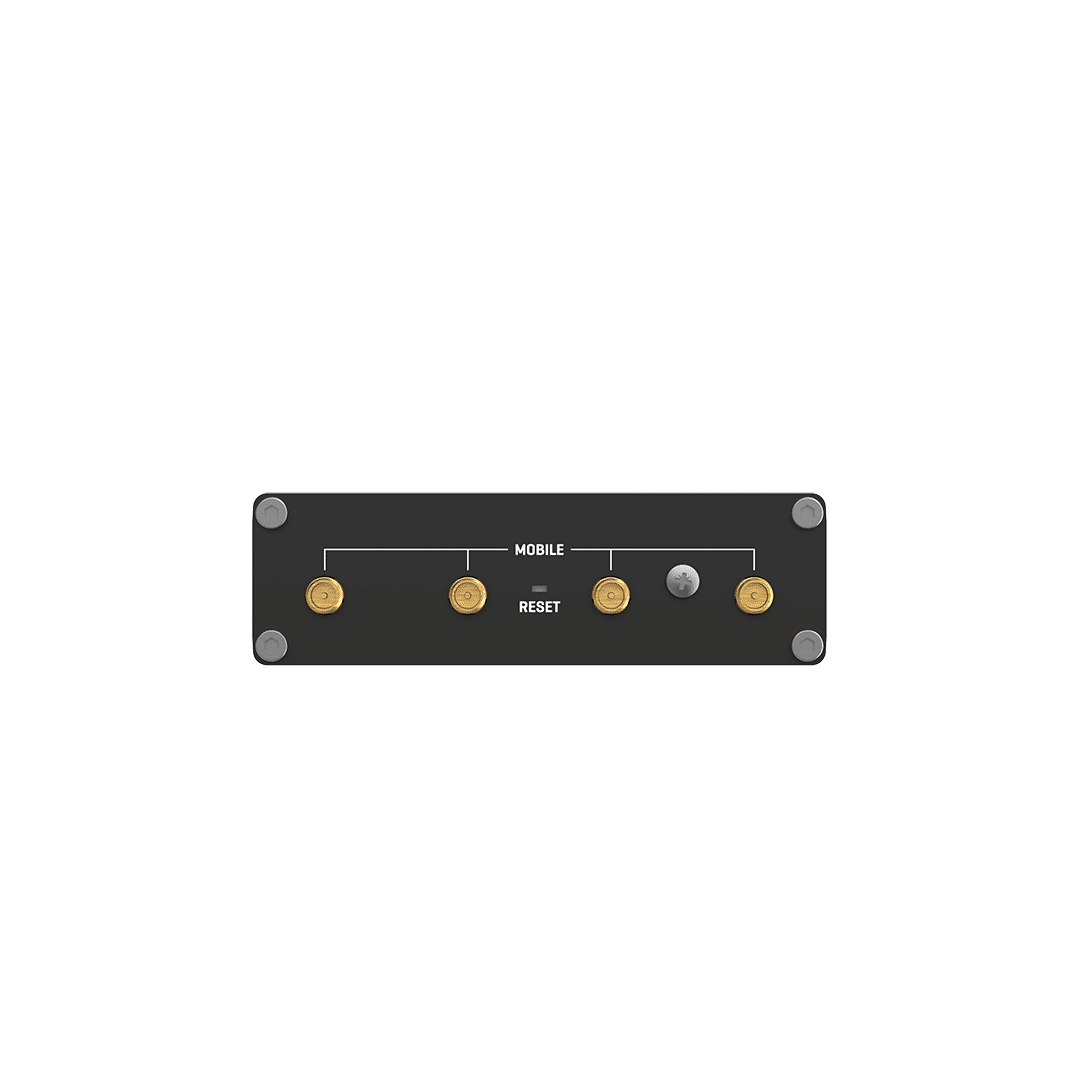

Antenna: 4 x SMA for mobile
USB: 1 x Virtual Network Interface via micro USB
Reset: Restart / Reset user defaults / Factory reset button

Housing material: Aluminum housing
Dimensions: 100 x 30 x 93.4 mm
Weight: 241g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating temperature: -40°C to 75°C
Operating humidity: 10% to 90% non-condensing
Ingress Protection rating: IP30

Regulatory: CE, UKCA, RCM, CB, NBTC, RoHS, REACH

Standards: EN 55032:2015 + A11:2020 + A1:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2: 2019 + A1:2021, EN 61000-3-3: 2013 + A1:2019 + A2:2021, EN 301 489-1 V2.2.3, EN 301 489-52 V1.2.1
ESD: EN 61000-4-2:2009
Radiation immunity: EN IEC 61000-4-3:2020
EFT: EN 61000-4-4:2012
Surge immunity (AC mains power port): EN 61000-4-5:2014 + A1:2017
CS: EN 61000-4-6:2014
DIP: EN 61000-4-11:2020

Standards: EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 301 908-25 V15.1.1_15.0.6

Standards: CE: EN IEC 62368-1:2020 + A11:2020, EN 62311:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
