Teltonika SMA extension cable (PR2VM20M)
Teltonika SMA extension cable (PR2VM20M)

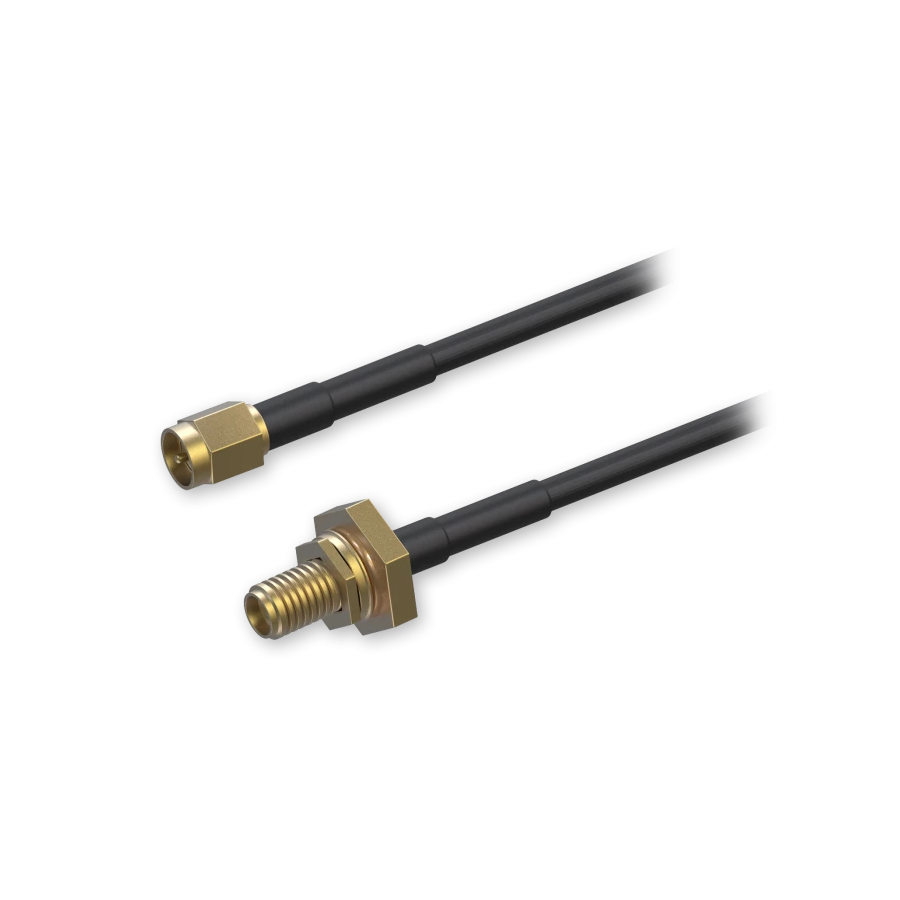

The SMA cable extension allows you to flexibly place antennas in both industrial and mobile IoT installations. The black cable, with SMA male on one end and SMA female on the other, ensures a stable and reliable extension of the connection between devices with SMA connectors.
Regular price
59 SEK
Regular price
Sale price
59 SEK
Unit price
per
Excl. VAT
Couldn't load pickup availability
Produktnummer: PR2VM20M
Document
Document
What's in the box?
What's in the box?
Manufacturer
Manufacturer
Tekniska specifikationer
Generally

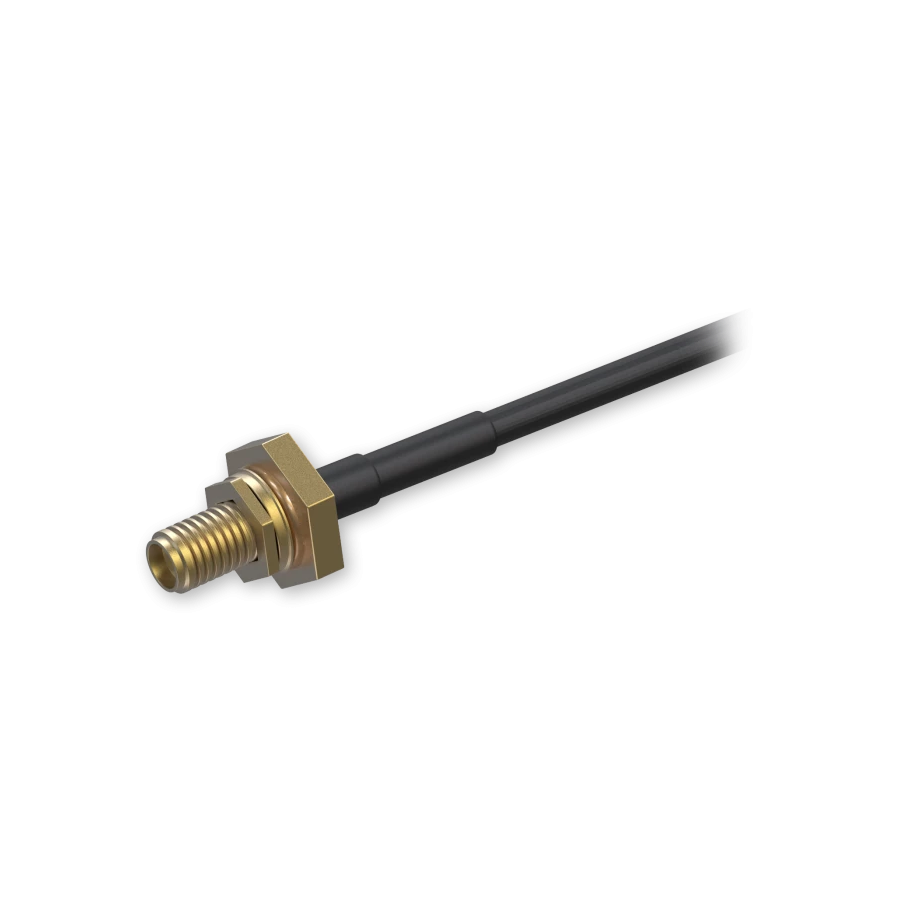

Connector 1: SMA (female)
Connector 2: SMA (male)
Cable: 2000mm
Frequency range: 0 – 6000 MHz
VSWR: 1.35
Impedance: 50 Ω
Cable attenuation: 3.5 dB @ 2700 MHz
Operating temperature: –55 °C to +155 °C
Working voltage: Max 335 V
Breakdown voltage: 1000 Vrms
Lifespan (switching cycles): ≥ 500 cycles
Weight: 50g
Connector 2: SMA (male)
Cable: 2000mm
Frequency range: 0 – 6000 MHz
VSWR: 1.35
Impedance: 50 Ω
Cable attenuation: 3.5 dB @ 2700 MHz
Operating temperature: –55 °C to +155 °C
Working voltage: Max 335 V
Breakdown voltage: 1000 Vrms
Lifespan (switching cycles): ≥ 500 cycles
Weight: 50g
Compatible products
RUT200, RUT206, RUT240, RUT241, RUT260, RUT271, RUT360, RUT361, RUT901, RUT906, RUT950, RUT951, RUT955, RUT956, RUT976, RUTC50, RUTM09, RUTM11, RUTM50, RUTM51, RUTM52, RUTM54, RUTM56, RUTM59, RUTX09, RUTX11, RUTX12, RUTX14, RUTX50, RUTXR1, TCR100, TRB140, TRB141, TRB142, TRB143, TRB145, TRB160, TRB245, TRB246, TRB255, TRB256, TRB500, TRM240, TRM250, TRM500.
Garanti
2 års fabriksgaranti
Garanti
2 års fabriksgaranti
Do you want to know more about the product?
Contact us for a demo or if you have any questions.
