ModTek Dock with Hub

ModTek Dock with Hub

2 369 SEK
2 369 SEK
Sale Sold out

Excl. VAT

Produktnummer: 216410

Designed to meet the demands of field work, transportation, logistics and industrial environments, the ModTek Dock is fully compatible with all ModTek Hard Cases now and in the future and offers charging and fast data transfer via USB-C.

Advantages of ModTek Dock:

  • High-performance USB-C – up to 5 Gbps data transfer, backward compatible with USB 2.0 Stable and secure mounting – thanks to robust lugs and quick-release knobs
  • Multi-port expansion hub – 3 x USB-A and 1 x USB-C for accessories like scanner, dashcam, card reader, etc.
  • Safe charging – directly in the dock or via rear USB-C port
  • Military-grade durability – tested for thermal shock, vibration (16Gmrs) and up to 20,000 USB-C connections

The dock is optimized for mobile work. The convenient quick-release knob allows you to insert and remove your tablet with one hand – quickly and easily.

Technical specification

  • Size and Weight:
    Dimensions: 230 × 138 mm
    Depth: 50mm
    Volume: 1587 cm³
    Weight: 366g

Document

What's in the box?

1 × ModTek Dock med Hub

View full details

Installation guide - Step 1.

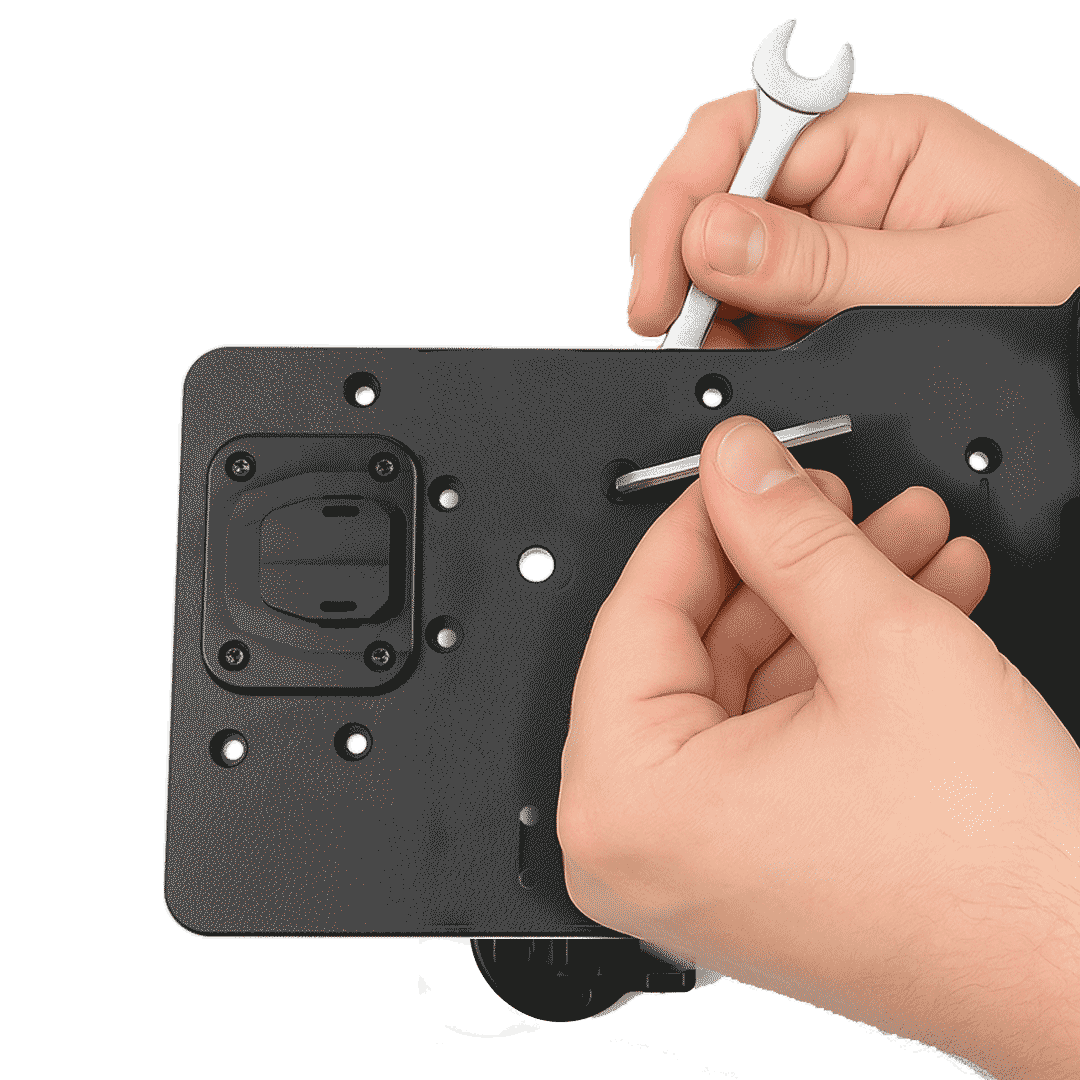

Place the ModTek Dock in the desired location and secure with the included screws.

Step 2.

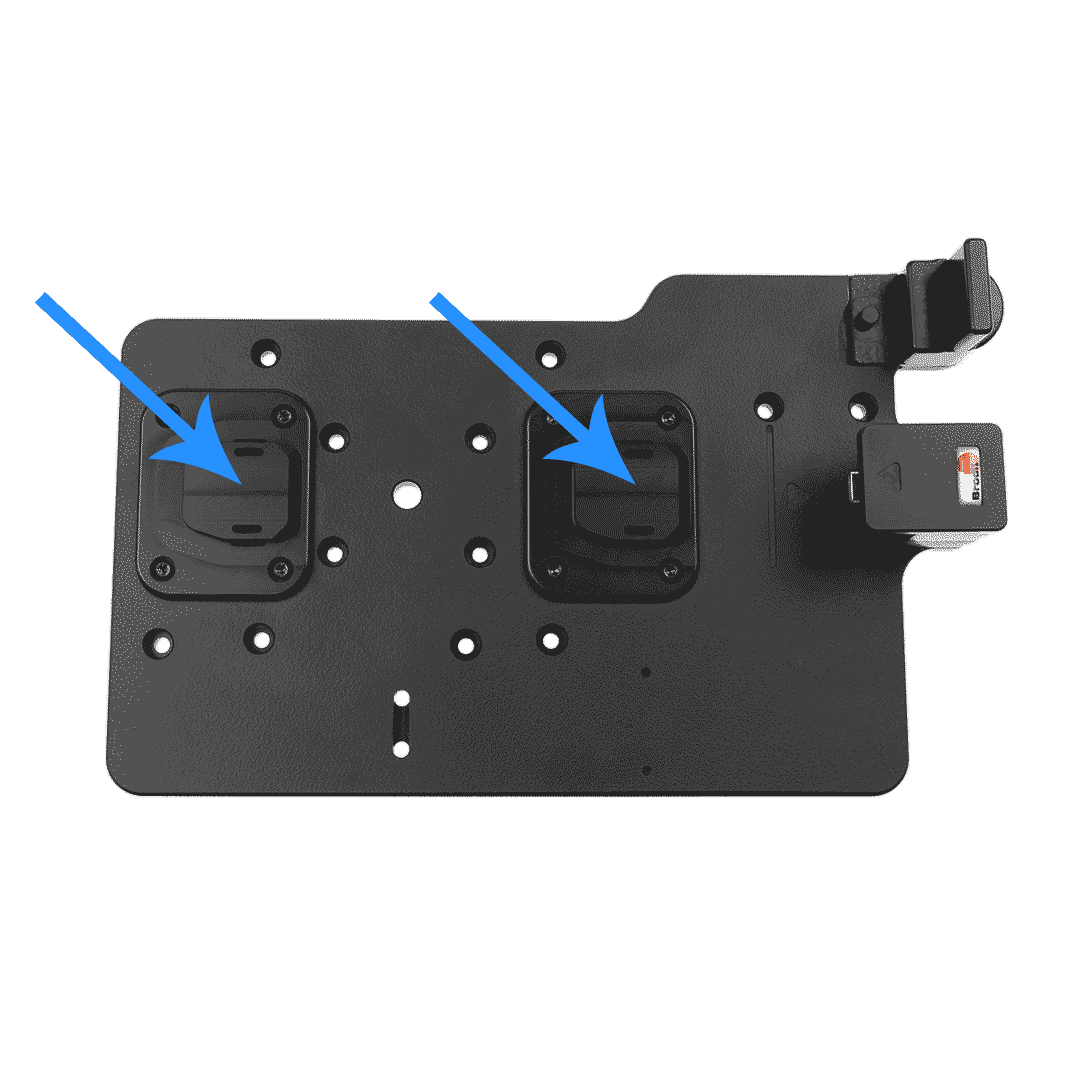

The two mounting lugs are used to guide the tablet directly towards the USB-C connector for smooth connection and to avoid unnecessary wear.

Step 3. Connecting

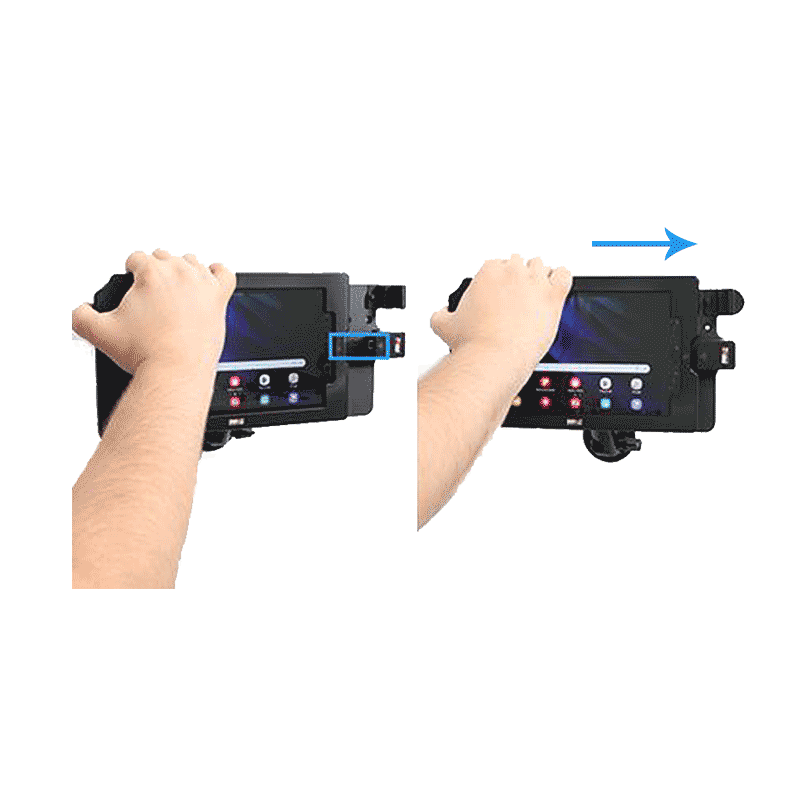

Both the Hard Case and Dock have markings that indicate correct placement when connecting. Place the Hard Case on the ModTek Dock so that both mounting tabs wedge into the Hard Case before you begin to slide the tablet toward the USB-C connector.

NOTE: If only one of the mounting tabs is engaged, the angle of connection will be incorrect and may result in permanent damage. Once the markings are aligned, slide the Hard Case towards the USB-C connector until you hear a distinct click, this should be easy, the movement requires force so start over and make sure both mounting tabs are engaged correctly.

Step 4.

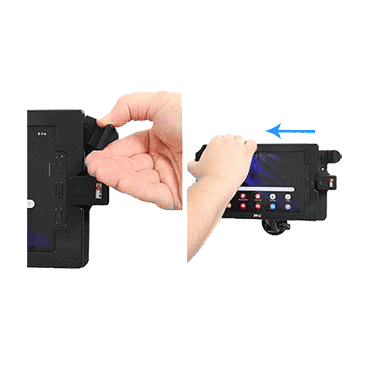

Release the Hard Case: Turn the locking knob clockwise, then grab the Hard Case and slide it out from the USB-C connector.

Do you want to know more about the product?

Contact us for a demo or if you have any questions.
